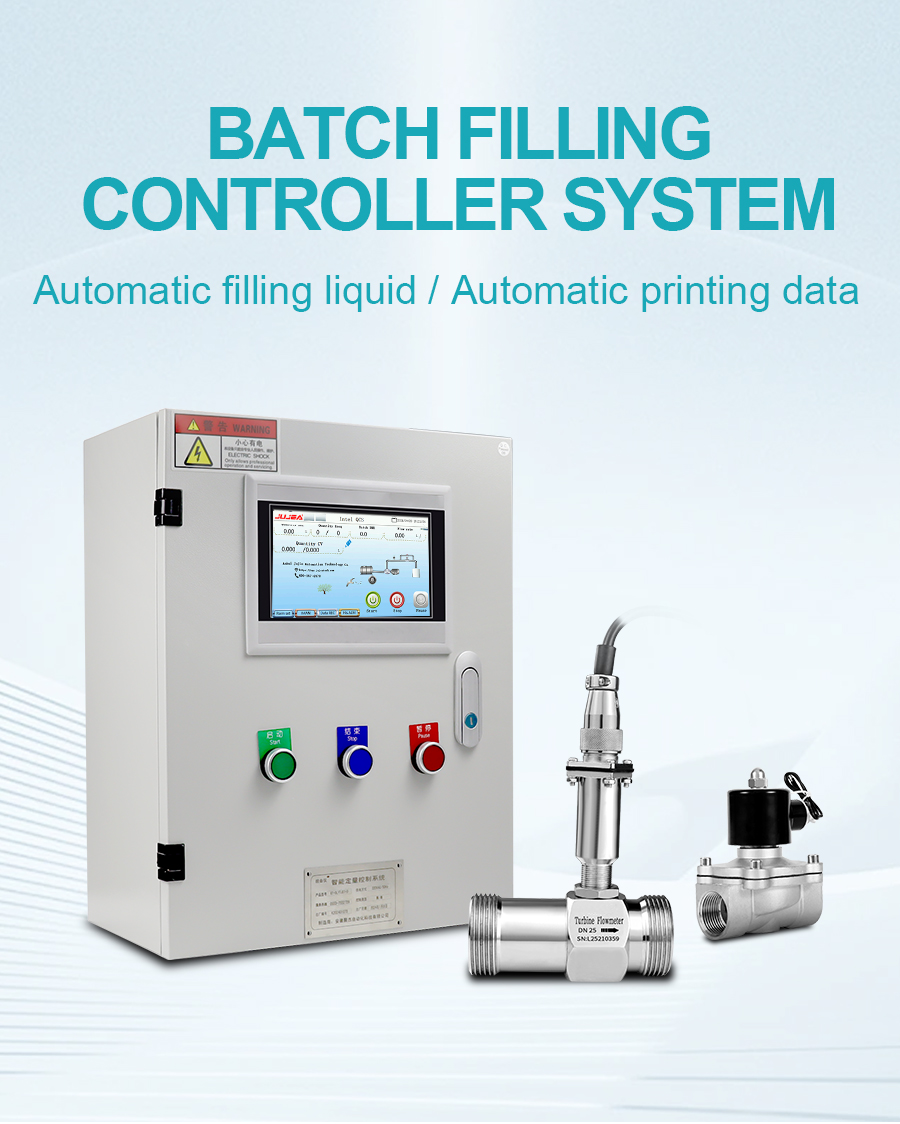

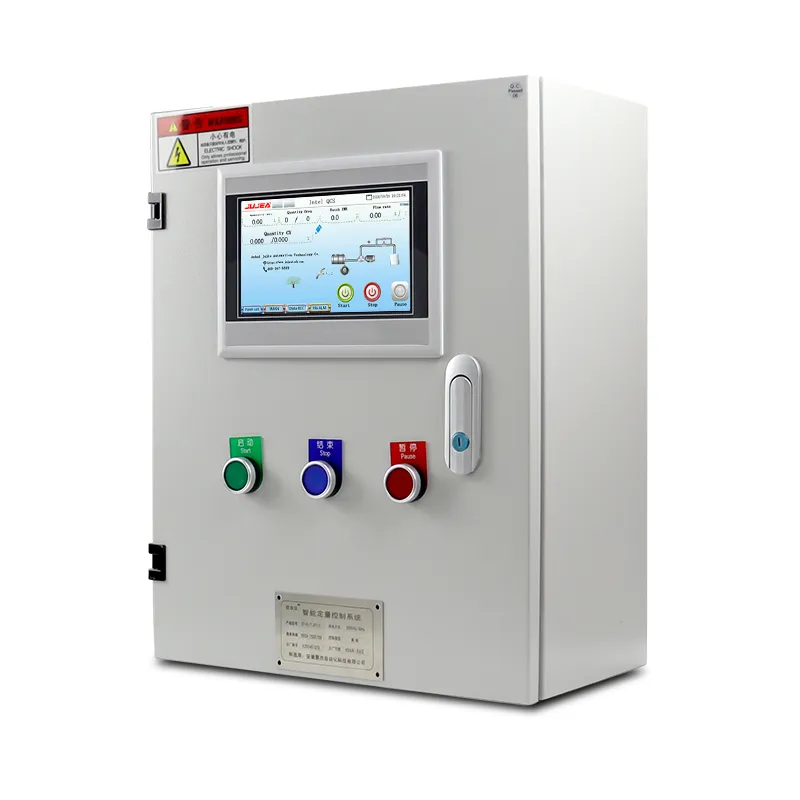

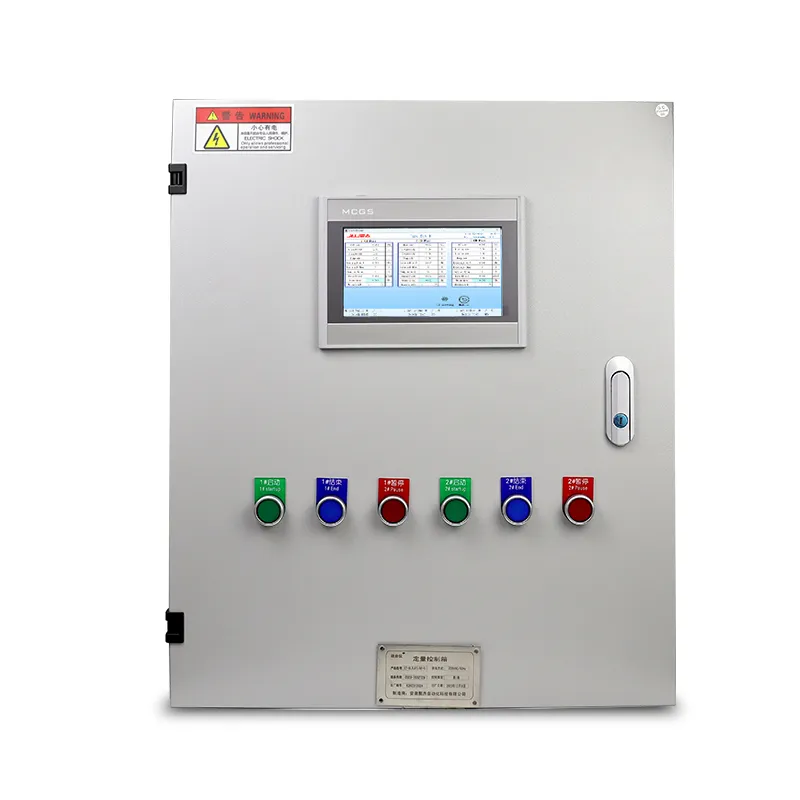

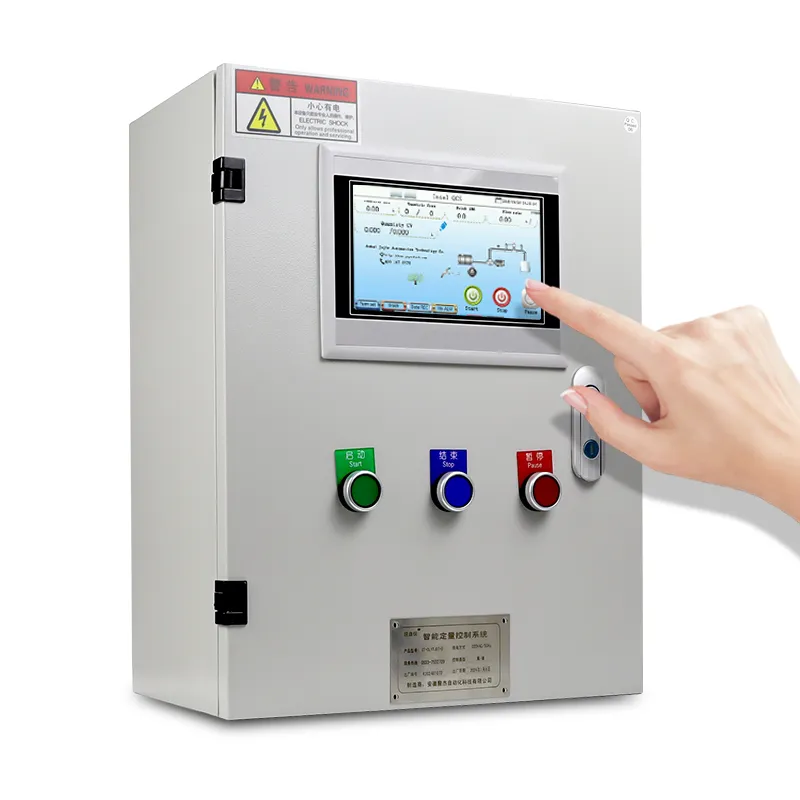

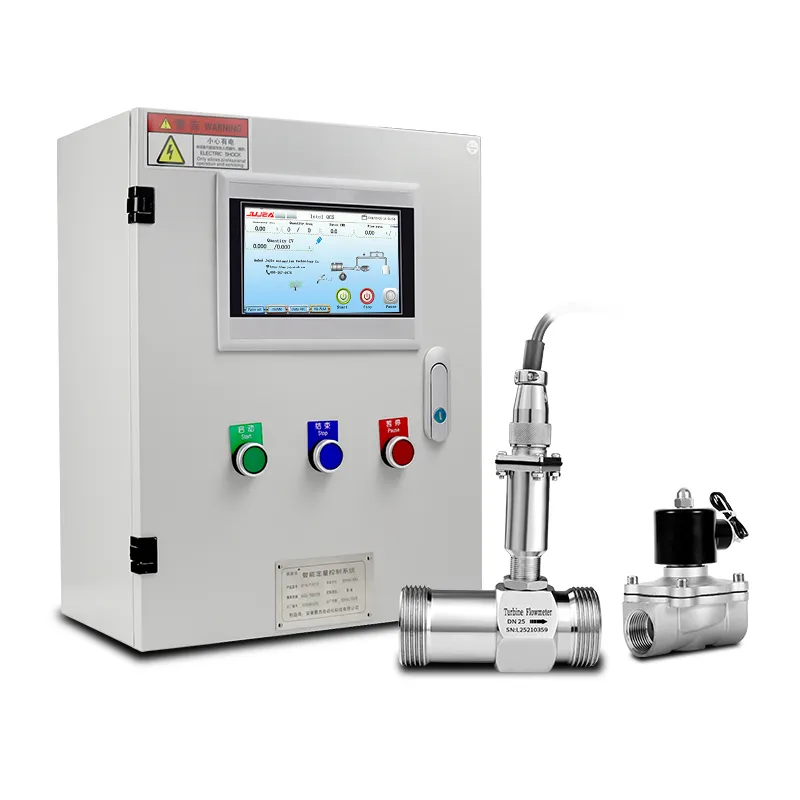

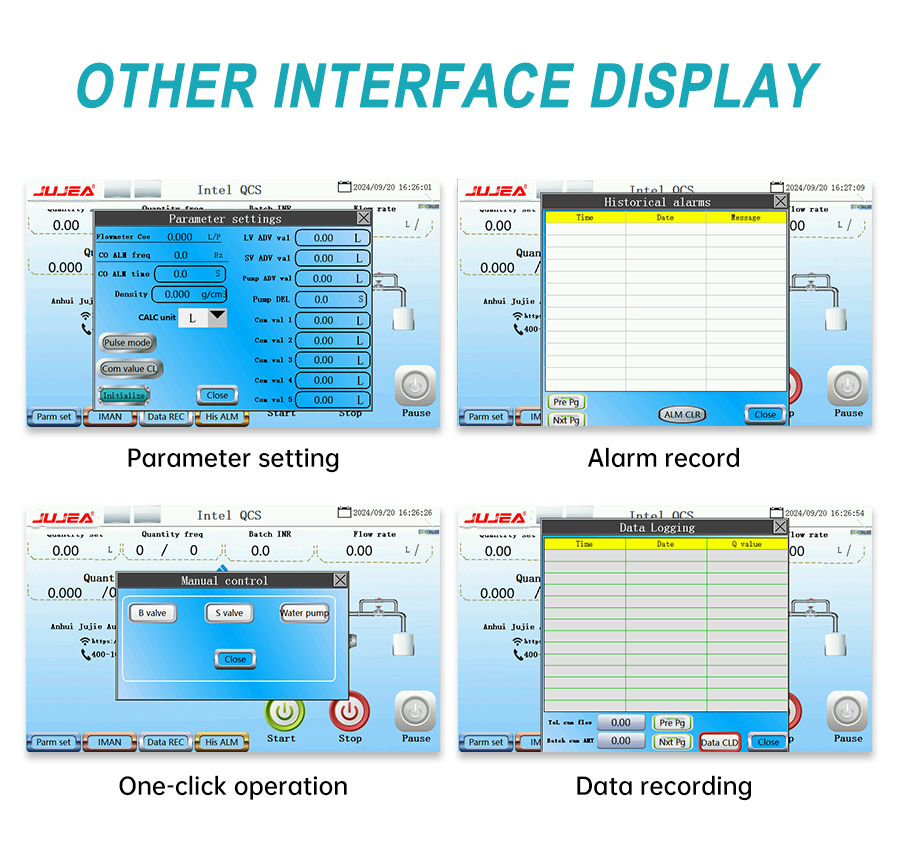

PLC + 7-inch industrial touch HMI, intuitive flow graphic display

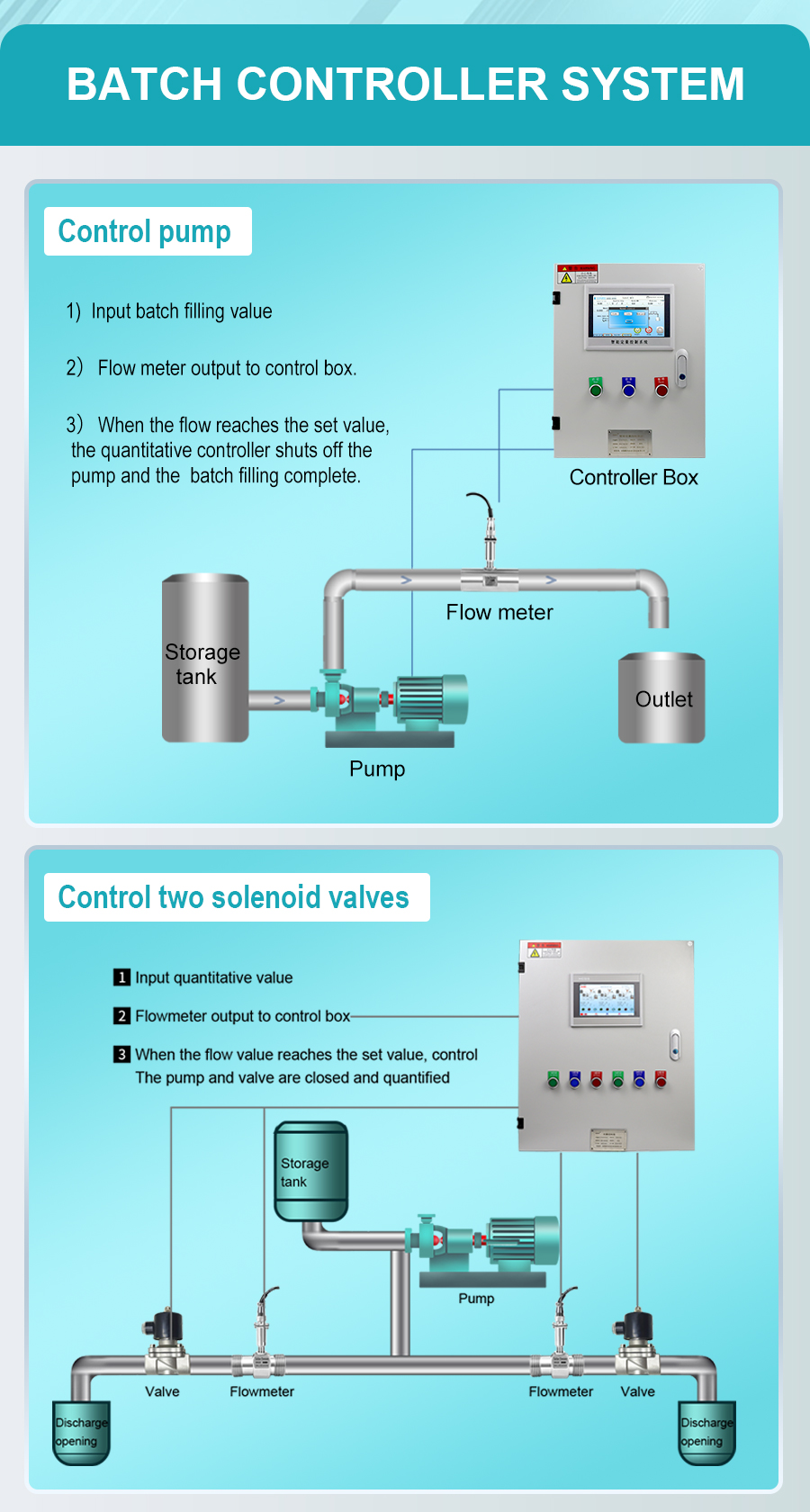

Dual large & small valve advance control to eliminate filling overshoot

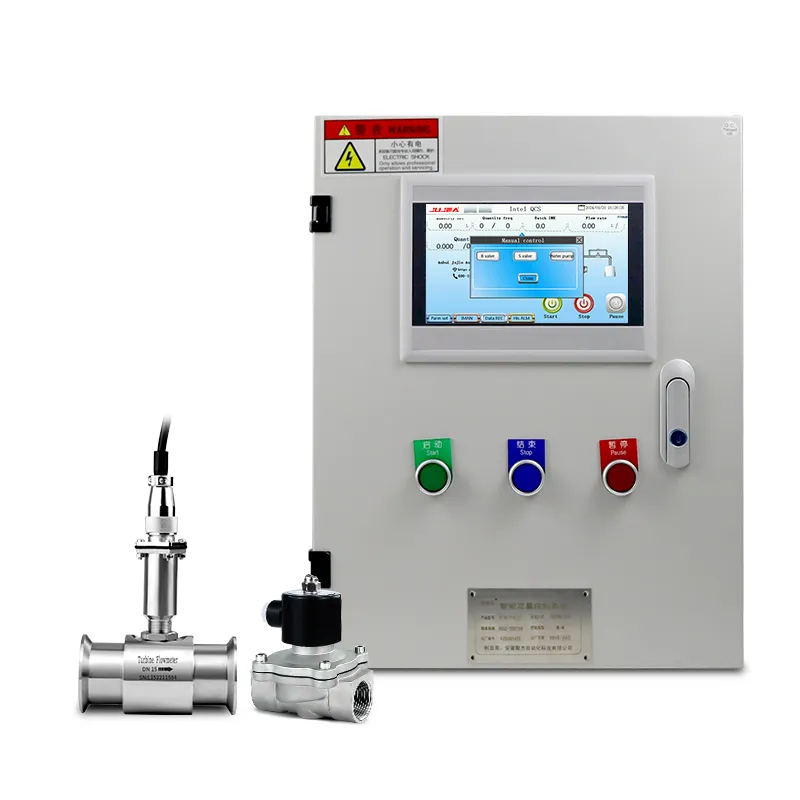

Supports pulse or current signal flowmeter access
L/m³/Kg/t multi-unit switching for volume & mass metering
Permanent storage of batch data & fault logs after power off
Modbus RTU RS485 communication for upper computer linkage
Multiple safety alarms: flow loss, pump overload, liquid level
Independent manual mode for valve and pump debugging
| Screen | 7/10/15-inch industrial-grade touchscreens |
| Controller | High-performance German Siemens PLC |
| Flow Channel Input | Pulse-type input signal; frequency range: 1-30kHz; voltage rating: DC24V |
| Relay Output | Supports 3-channel relay output, contact capacity 3A 250VAC/5A 24VDC |
| Power Supply | 220VAC/50HZ AC power supply |
| Communication Interface | Provides an RS485 communication interface; supports Modbus RTU protocol (for connection to a host computer or other data reading devices). |
| Product Dimensions | 400*500*200mm |
